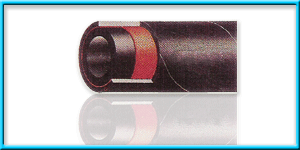

LOW PRESSURE HOSE-R6
SPECIFICATION : Conforming to std. SAE- 100 R6





CONSTRUCTION

Inner Tube : Seamless Synthetic Oil Resistant Rubber.
Reinforcement : One Rayon Braid.
Outer Cover : Oil, Weather, Abrasion Ozone Resistant Synthetic
   Rubber.
Temperature : -40ºC to +120ºC.
Application : For high pressure hydraulic oils fuel, lubricating oils,
..water and air.
End Connection : Swaged or Crimped or Reusable type .


HOSE I.D.


HOSE O.D.


WORKING PRESSURE


TEST PRESSURE


BURST PRESSURE


BEND PRESSURE

inches
mm
inches
mm
Psi
bar
Psi bar Psi bar  inches mm
1/4
6.4
0.50
12.7
400
28
800 55 1600 110 2.5 64
5 /16
7.9 0.56

14.3

400 28 800 55 1600 110 3.0 76
3/8 9.5 0.62

15.9

400 28 800 55 1600 110 3.0 76
1/2
12.7
0.78
19.8
400
28
800 55 1600 110 4.0 102
5/8
15.9
0.94
24.0
350
24
700 48 1400 96 5.0 127
*3/4
19.0
1.02
26.0
250
17
500 35 1000 69 7.0 177
*1
25.4
1.27
32.5
190
13
380 26 760 52 9.1 230
