Hose Fitting |
| |
|
| |
|
|
| |
|
|
| |
|
|
|
|

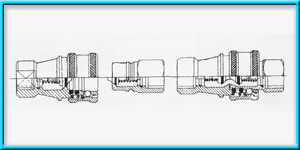

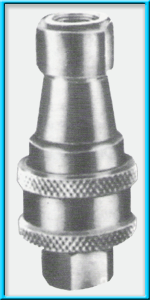

QUICK
RELEASE COUPLINGS (QRC)
|
|
|
| Size
|
:
1/8" upto 3" |
| Type
|
: 1)
Double Check Valve QRC i,e. with self
Sealing Valve at coupler
& adaptor ends.
2) Single Check valve QRC i,e. self sealing
valve at coupler &
through types adaptor.
3) Without Check Valve QRC i,e. both coupler
& adaptor through type.
|
| Temperature |
:
Upto +370ºC |
| Seal
Material |
:
Nitrile/ Viton/ Neoprene/ Silicon/ Teflon. |
| Body
Material |
:
Carbon Steel / Brass/ S.S. 304/ S.S 316/ Aluminum. |
| End
Connection |
:
Socket welding, hose thread, pipe thread, hose
shank & flanged. |
| Pressure |
:
Upto 4000 psi |
| Application
|
:
Wide application on fluids line connections like
air, steam, gases, liquids, oil, etc, used
in
FERTILIZER, CHEMICAL PETROLEUM,
FURNACES,TEXTILE MACHINE, MACHIN
TOOLS, REFRIGERATIONS & MANY
MORE INDUSTRIES. |
 |
The
advantages of Quick Release Couplings: |
1.
Instant connection or disconnection without a
drop leakage due to internal action of valves.
2. Suitable technology.
3. High mechanical precision.
4. A quality of materials and sealing suitable for
every fluid.
5. A rigorous control which ensures safety for
use with gas, oxygen, hydrogen, propane,
steam, solvent & acids acetylene etc.
|
Vikram & Co. specialized in all
types of hoses such as polypropylene, hydraulic, rubber hose,
stainless steel hose, couplings, bellows, expansion joint, and
pipe fittings in Mumbai India. |
|
